ATAS Integration

In this article you will learn how to set up the Menthor Q Indicators ATAS Integration. You can now access Gamma Levels and Blind Spots Levels on the platform. You can now integrate the MenthorQ data into ATAS directly via API.

What is ATAS?

ATAS is a professional trading and analytics platform. This powerful software is designed for trading exchange-traded assets. It enables you to focus on key factors like order flow, volume, and liquidity in the order book. This information helps you understand the balance or imbalance between buyers and sellers — the underlying cause of price movements on the exchange. Check out the Website.

Indicator Features

Within the ATAS Indicator you have the following features:

• Integration via API
• Full Customization of Levels Plots and Labels
• Access Multiple Levels Type:
  • Gamma Levels
  • Gamma Levels Intraday
  • Gamma Scalping
  • Gamma Scalping Intraday
  • Blind Spots
  • Swing Levels
• Real Time Alerts
• Levels Conversion. You can convert all Levels Type from one asset to the other using Manual Ratio

How to integrate MenthorQ Levels on ATAS

Integrating the MenthorQ Levels into ATAS is very simple. To do so follow these Steps:

• Log into your Account Dashboard and go under Integration. Locate the ATAS section and download the indicator.
• Fill up the Activation Form. Your user id is the email associated with your ATAS account. It can take up to 24 hours to get your email enabled.
• Restart the ATAS Platform
• You will find the MenthorQ Indicators in your Custom Modules section of ATAS.

ATAS Stable Version

Locate the MenthorQ Levels or MenthorQ Levels V1.03 and install.

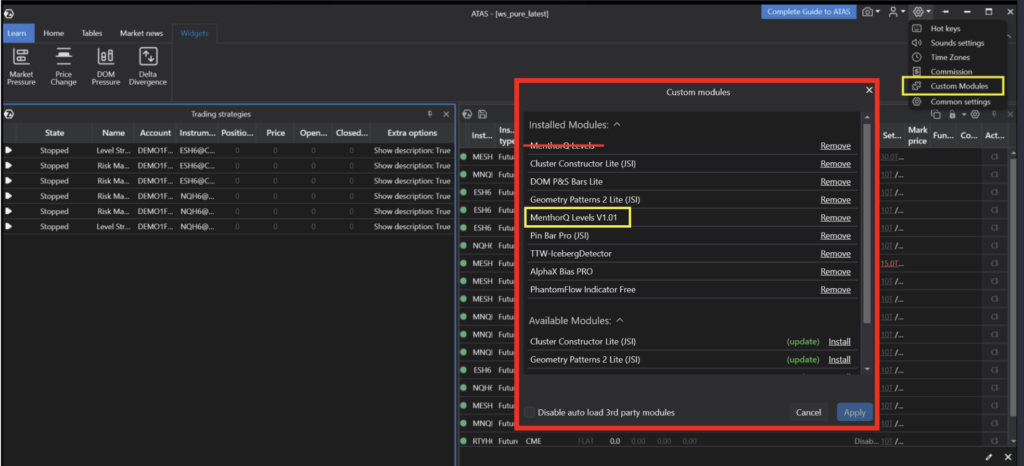

Latest Version

Locate the Costume Modules and make sure MenthorQ Levels or MenthorQ Levels V1.03 are installed

ATAS X for Windows and Mac

For the ATAS X version follow the steps below.

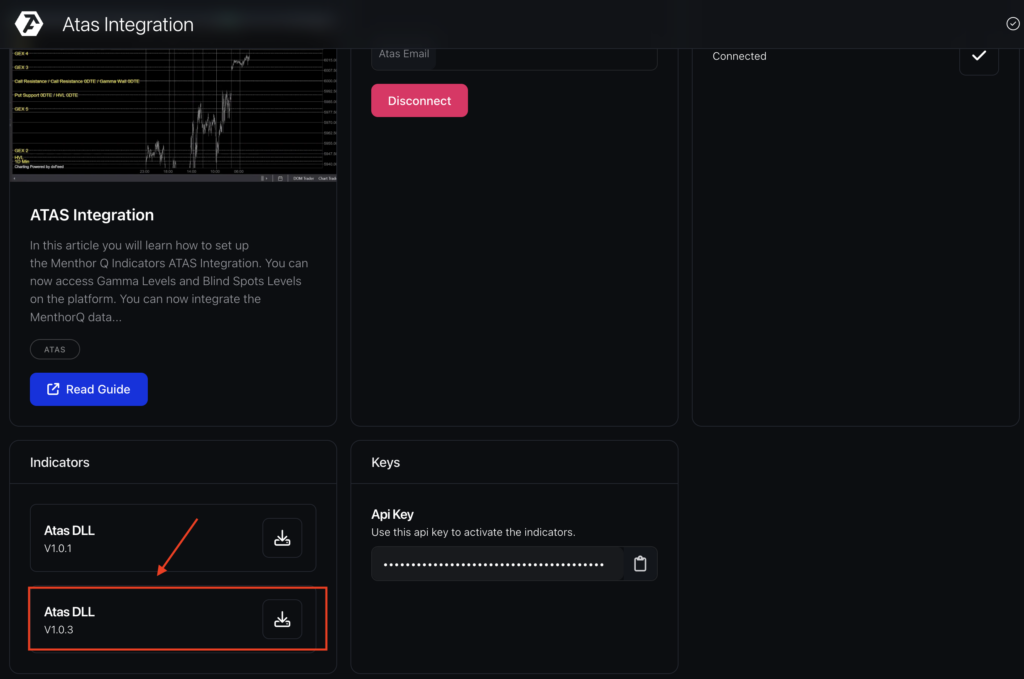

• Download the Indicator V 1.0.3 from MenthorQ Dashboard

• Install indicator in ATAS X
  • Open the indicators dialogue
  • Click upload/install button in the bottom left corner of the dialogue
  • Select downloaded DLL file

Check out the Video Tutorial.

Configure the Indicator on ATAS

Once downloaded the indicator go into your ATAS Indicator List and look for the MenthorQ Levels Indicator.

Step 1. Add your API Key

Scroll down the Indicator Settings and add your API Key. You can retrieve the API Key within the MenthorQ Account Dashboard.

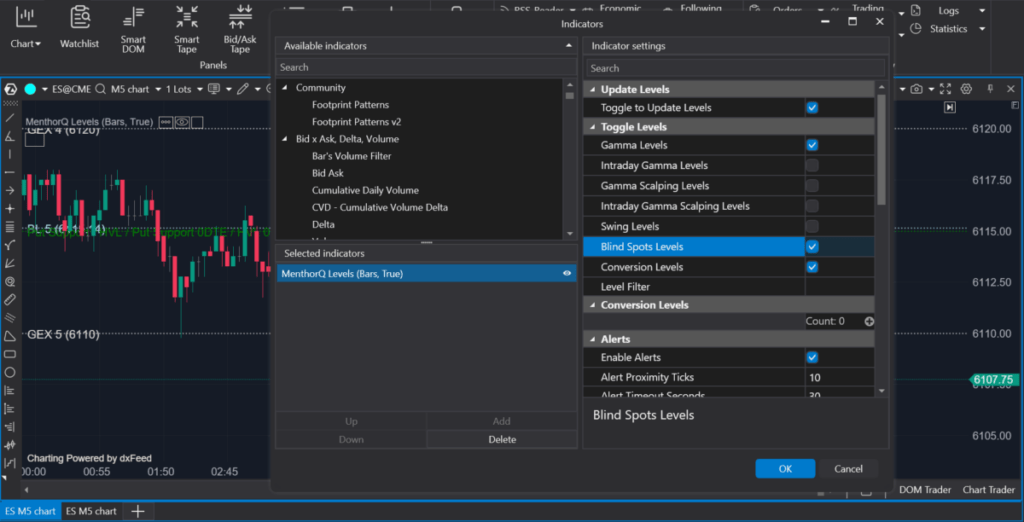

Step 2. Choose Level Type

You can select what types of Levels you want in your chart and the Gamma Model. You can add Gamma Levels, Gamma Scalping, Swing Levels (when available) and Blind Spots Levels.

For Gamma Levels we have 2 Models:

• Gamma Levels. Those are the main MenthorQ Gamma Levels.
• Gamma Scalping. This model allows you to access more gamma levels within a smallare range. Tailored for Futures Traders who are looking at tight areas for scalping.

Step 3. Set up Alerts

Within the Indicator you can toggle the alert functionality and receive a popup when the price approaches or hit one of the levels.

Step 4. Customize Levels Labels

Within the ATAS indicator you are able to change the way levels appear in terms of color, stile and size. You also have the options to shorten levels names, allowing further customization.

Step 5. Levels Filters

You now have the ability to filter out Levels that you don’t want to plot. The filtering setting allows you to remove levels simply by adding text within the boolean search options.

• For example if I wanted to remove all GEX Levels I could type the word “GEX” in the filter and this will remove all the GEX Levels.
• If I only wanted to remove GEX 10 and GEX 4 then I would type in the words: “GEX 10, GEX 4” separated by a comma.

Step 6. Levels Conversion

Within ATAS you can now convert Levels from one asset to the other. For example you can do the following conversions:

• Convert End of Day SPX Gamma Levels to ES
• Convert Intraday QQQ Gamma Levels to NQ
• Convert QQQ Blind Spots Levels to NVDA
• Convert GLD Swing Levels to GC

Note: Conversion only works with Manual Ratio. For more information about Levels conversion check out our Tutorial Videos on our Trading Integrations Course.
